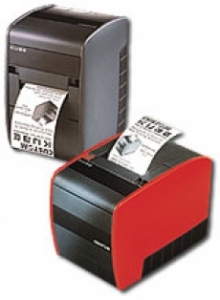

KUBE II
基本参数
Powerfull and very fast: 250mm/sec It prints logos and graphic coupons at high speed Paper width 80/82.5mm Rs232 serial interface and USB full speed 10 times faster Robust and Reliable 详细参数产品型号
|
CUSTOM-KUBE II |
Printing method |
Thermal line printing |
Resolution |
203dpi (8 dots / mm) |
Printing Speed (mm/sec) |
High Quality, 125 Normal, 200 High Speed 250 |
Character set |
PC437, PC850, PC860, PC863, PC865, PC858 (euro) |
Printing Method |
Normal, 1x to 8x height and width, expanded, reverse, underlined, sript
|
Printing Direction |
Dritto, 90°, 180°, 270° |
Paper width
|
80mm/ 82.5mm |
Paper Thickness |
65μm |
Roll dimension |
max Ø 90mm |
Emulation |
CUSTOM/POS
|
Interfaces |
Rs232 serial + USB full speed 10 times faster
|
Data Buffer
|
20 Kbytes |
Flash Memory |
512 KB |
Graphic memory |
2 logos of 608 x 862 dots |
Drivers |
Win 2K, XP; Linux |
Comsumption |
1.5 A * |
Power supply |
24 Vdc ± 10% (exthernal power supply) |
DKD Function |
1 driver or customer display direct connection |
MTBF |
360.000 hours ** |
Safety |
EN60950 2001 |
Marks |
CE, RoHS Compliant |
Dimension (LxAxP) |
140x152x209mm |
Weight |
2.3 Kg |
尺寸(宽x高x长)
|
140x150x117mm
|
重量 |
0.9 Kg |
