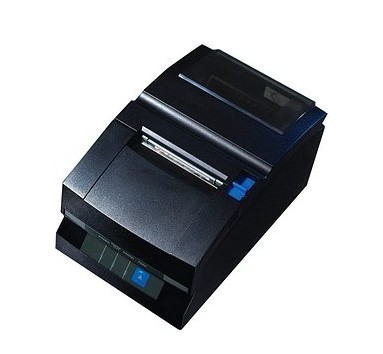

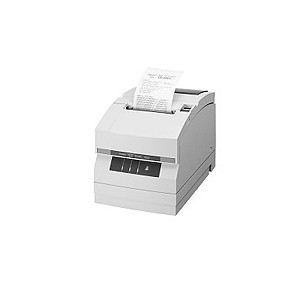

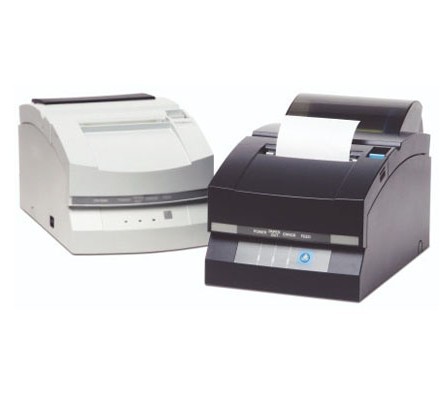

CD-S500
主要特性
High-speed, two-color printing Logic-seeking control Drop-in paper loading Selectable paper widths One, two, or three ply receipts Built-in programmable buzzer ESC/POS, CBM, or STAR emulationBuilt-in NV memory User-installable interface cards Cash drawer kick-out Auto Cutter (optional)Wall mount kit (optional) Black mark support (optional) Black or Cool White Available Three-Year Warranty 详细参数产品型号
|
CD-S500 |
Printing method
|
Serial impact dot matrix (Logic-seeking control)
|
Printing direction
|
Bi-directional
|
Head pins
|
9 pins (F: 0.3mm, Pin interval: 1/72 inch)
|
Number of columns
|
Paper width 76.2 mm: 40/42 or 33/35 columns Paper width 69.5 mm: 36/40 or 30/32 columns Paper width 57.5 mm: 30/33 or 25/27 columns |
Character size (W x H)
|
1.25 x 3.12mm (7 x 9 dots), 1.57 x 3.12mm(9 x 9 dots)
|
Printing speed
|
Printing: 240 CPS (3P paper 200CPS) Through-put: 76.2 mm wide, 40 columns (7 x 9 + 3 sp, 6 LPI) 5.0 LPS 69.5 mm wide, 36 columns (7 x 9 + 3 sp, 6 LPI) 5.4 LPS 57.5 mm wide, 30 columns (7 x 9 + 3 sp, 6 LPI) 6.0 LPS |
Character set
|
ASCII (96 characters ), International characters, Katakana, Code page 437, KATAKANA, 850, 860, 863, 865, 852, 866, 857, 858, WPC1252 |
Line spacing
|
4.23mm
|
Paper feed
|
Method: Friction feed Minimum pitch: 1/144 inch Speed: 40 LPS (6 LPI) |
Paper
|
Types: 1P roll paper, 2P copy roll paper (1 original + 1 copy), *3P copy roll paper (1 original + 2 copies) Paper width: 76.2 / 69.5 / 57.5±0.5 mm Roll diameter: F30 mm ~83mm Core diameter: F10 +2/-0 mm (Internal diameter), F27 mm or less (External diameter) Paper thickness: 0.06 ~ 0.085 mm (1 P), 0.05 ~ 0.20 mm (Copy paper/total thickness) * When 3P, printing speed falls 16%. |
Ink ribbon cartridge
|
Two colors (Red/Black), Single color (Black)
|
Interface
|
Parallel (IEEE128), Serial (RS-232C), USB
|
Emulation
|
ESC/POS (Page mode), CBM mode, STAR mode
|
Input buffer
|
4K/40 bytes
|
NV bit image
|
128K bytes
|
User NV memory |
8K
|
Drawer kick-out
|
2 drawers
|
Power supply
|
DC24V±7%
|
AC adapter
|
Input: AC 100 ~ 240V, 0.55A ~ 0.35A, 50/60 Hz Output: DC24V±5% |
Weight
|
Standard type: Approx.2.2 kg With Auto cutter type: 2.3 kg With Auto cutter and rewinder type: 2.45 kg (exclude AC adapter, AC case, ink ribbon cartridge and paper) |
Dimensions (W x D x H)
|
Standard type: 156 x 247.7 x 132 mm With Auto cutter and rewinder type: 156 x 277.7 x 196.7 mm |
Operating environment
|
0 ~ 50°C, 10 ~ 90% RH (No condensation)
|
Storage environment
|
-20 ~ 70°C, 5 ~ 90% RH (No condensation)
|
Reliability
|
Printer: MCBF 7.5 million lines Printer head: 150 million characters Auto cutter: 1,000,000 cuts |
EMCand safety standards
|
UL, C-UL, FCC classA, TUV-GS, CE marking, CCC
|
