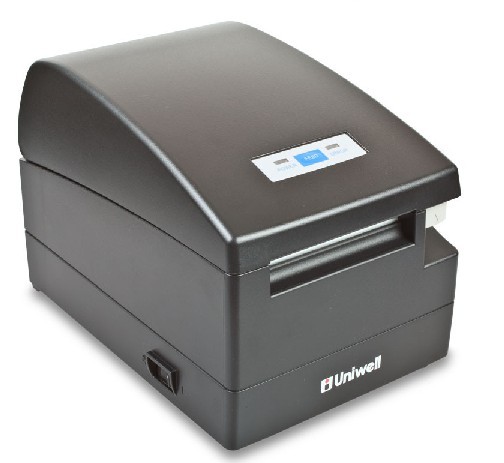

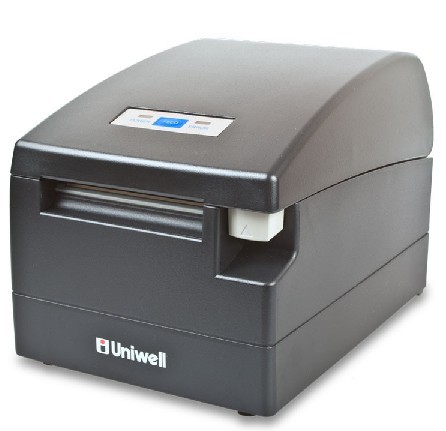

CT-S2000
主要特性
DMA (Direct Memory Access) with "Real World" speeds up to 220 mm/sec. Spill-Shield™ design prevents damage from moisture or foreign objectsUSB interface standard on all units: serial and parallel Ships with Windows™, Linux, and OPOS™ drivers详细参数产品型号
|
CT-S2000 |
Printing method
|
Line thermal dot printing
|
Printing width
|
82.5 mm paper: 80mm / 640 dots 80 mm paper: 72mm / 576 dots 60 mm paper: 54.5mm / 436 dots 58 mm paper: 54mm / 432 dots |
Dot pitch
|
8 × 8 dots / mm (203 dpi × 203 dpi)
|
Printing speed
|
Max. 220 mm/sec (52 lines/sec)
|
Number of columns
|
82.5 mm paper: Font A - 53 columns / Font B - 71 columns / Font C - 80 columns
80 mm paper: Font A - 48 columns / Font B - 64 columns / Font C - 72 columns 60 mm paper: Font A - 36 columns / Font B - 48 columns / Font C - 54 columns 58 mm paper: Font A - 35 columns / Font B - 46 columns / Font C - 52 columns |
Character size (WxH)
|
Font A: 1.50 × 3.00 mm (12 × 24 dots) Font B: 1.13 × 3.00 mm (9 × 24 dots) Font C: 1.00 × 2.00 mm (8 × 16 dots) |
Character table
|
Alphanumeric, International, PC437 PC850/852/857/858/860/863/864/865/866/ WPC1252/Katakana/Thai code 18 |
Barcode type
|
UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR, CODE 93
|
Line spacing
|
4.23mm (1/6 inch), selectable with a command
|
Paper
|
82.5/80/60/58 mm × F102 mm (Max.)
|
Interface
|
Parallel (IEEE1284 compliant) + USB Serial (RS-232C) + USB |
Input buffer
|
4K bytes / 45 bytes
|
NV user memory
|
384K bytes
|
Drawer kick-out
|
2 drawers
|
Power supply
|
DC 24V ± 7%
|
AC adapter
|
Input: AC100-240V, 50/60Hz, 150VA Output: DC24V, 2A |
Weight
|
AC power type: 2.0kg / DC power type: 1.8kg
|
Dimensions (W x D x H)
|
147 × 207 × 147 mm
|
Operating environment
|
5 ~ 40°C, 10 ~ 90% RH
|
Storage environment
|
-20 ~ 60°C, 10 ~ 90% RH
|
Reliability
|
Thermal head: 200,000,000 pulses or 150 km Auto cutter: 2,000,000 cuts |
EMC and safety standards
|
UL, C-UL, FCC class A, TUV-GS, CE marking
|
