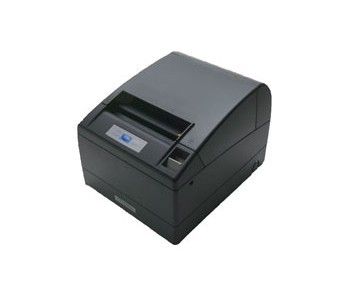

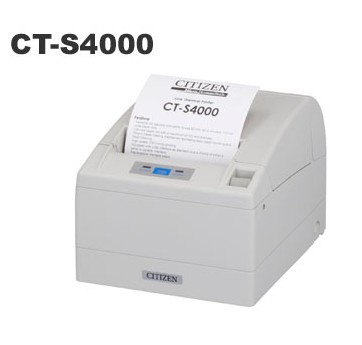

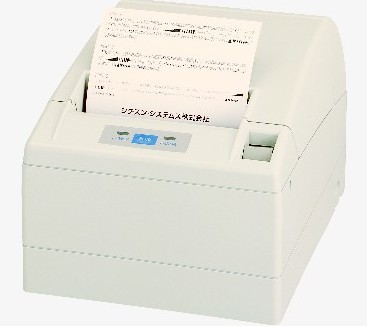

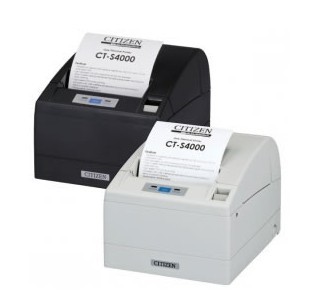

CT-S4000
主要特性
Can accommodate three different paper widths (112, 82.5, 80 mm) Dual interface standard on all units (USB + serial, parallel, or Ethernet) Direct Memory Access (DMA) Large-capacity (102mm) drop-in paper loading Ships with Windows™ 2000, XP, Linux, OPOS drivers, and Customization utility. Industry’s Best Three Year Warranty 详细参数产品型号
|
CT-S4000 |
Printing method
|
Line thermal dot printing
|
Printing width
|
112 mm paper: 104mm/832 dots 82.5 mm paper: 82.5m/660 dots 80 mm paper: 72mm/576 dots |
Dot pitch
|
8 × 8 dots / mm (203 dpi × 203 dpi)
|
Printing speed
|
Max. 150 mm/sec (35.4 lines/sec)
|
Number of columns
|
112 mm paper: Font A - 69 columns / Font B - 92 columns / Font C - 104 columns
82.5 mm paper: Font A - 55 columns / Font B - 73 columns / Font C - 82 columns 80 mm paper: Font A - 48 columns Font B - 64 columns Font C - 72 columns |
Character size (WxH)
|
Font A: 1.50 × 3.0 mm (12 × 24 dots) Font B: 1.13 × 2.13mm (9 × 17 dots) Font C: 1.00 × 2.00 (8 × 16 dots) |
Character table
|
Alphanumeric, INternational, PC437 PC850/852/857/858/860/863/864/865/866/ WPC1252/Katakana/Thai code 18 |
Barcode type
|
UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR, CODE 93
|
Line spacing
|
4.23mm (1/6 inch), selectable with a command
|
Paper
|
112 / 82.5 / 80 mm x F102 mm Paper thickness: 0.065-0.15m |
Interface
|
Parallel (IEEE1284) + USB Serial (RS-232C) + USB |
Input buffer
|
4K bytes / 45 bytes (Selectable in Serial or Parallel interface) 16K bytes in USB interface |
NV user memory
|
384K bytes
|
Drawer kick-out
|
2 drawers
|
Power supply
|
DC 24V ± 7%
|
AC adapter
|
Input: AC100-240V, 50/60Hz, 150VA Output: DC24V, 2A |
Weight
|
AC power type: 2.3kg / DC power type: 2.0kg
|
Dimensions (W x D x H)
|
177 × 213 × 147 mm
|
Operating environment
|
5 ~ 40°C, 10 ~ 90% RH
|
Storage environment
|
-20 ~ 60°C, 10 ~ 90% RH
|
Reliability
|
Thermal head: 100,000,000 pulses or 100 km Auto cutter: 1,000,000 cuts |
EMC and safety standards
|
UL, C-UL, FCC class A, TUV-GS, CE marking
|
