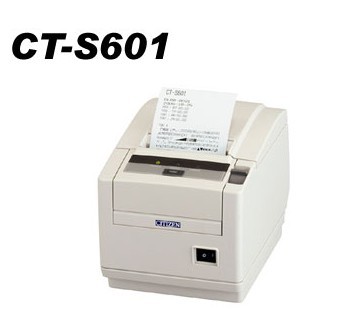

CT-S601
主要特性
High-speed (200 mm/s) printing Compact design can be installed anywhere Printer status and errors indicated by 3 LEDs and a buzzer Equipped with a fast and quiet cutter Easy to clear cutter jams Interchangeable interfaces Built-in cash drawer kick-out interface Driver and utility software included Can be desktop or wall mounted 详细参数产品型号
|
CT-S601 New! |
Printing width (*1) |
80 mm / 640 dots, 72 mm / 576 dots, 64 mm / 512 dots, 54.5 mm / 436 dots, 54 mm / 432 dots, 52.5 mm / dots, 48 mm / 384 dots, 45 mm / 360 dots, 48.75 mm / 390 dots, 68.25 mm / 546 dots
|
Dot density
|
8 × 8 dots / mm (203 dpi)
|

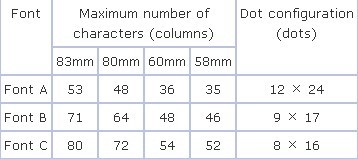

Number of print columns (*2) |
 |
Character size (W × H) (*3) |
Font A: 1.50 × 3.00 mm Font B: 1.13 × 2.13 mm Font C: 1.00 × 2.00 mm |
Character type
|
Alphanumeric, International, PC437 PC850/852/857/858/860/863/864/865/866/
WPC1252/Katakana/Thai code 18 |
Operation panel
|
3 LEDs, Feed button
|
User memory
|
384 Kb (capable of storing user-defined characters and logos)
|
Barcode type
|
UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR (NW-7), CODE 93, PDF417, QR Code
|
Line spacing
|
4.23mm (1/6 inch) (changeable using commands)
|
Paper roll
|
Paper roll: 83+0/-1 mm, 80+0/-1 mm, 60+0/-1 mm, 58 mm+0/-1 × F 80 mm Paper thickness: 0.065 - 0.075mm (core tube diameter: inner 12 mm/outer 18mm) 0.075 - 0.150mm (core tube diameter: inner 25.4 mm/outer 32 mm) |
Interface
|
Serial (RS-232C compliant), Parallel (IEEE1284 compliant), USB, USB with hub, Ethernet, powered USB |
External device port
|
Cash drawer kick-out
|
Buffer size
|
4K bytes / 45 bytes
|
Pupply voltage
|
DC 24V ± 5%
|
Power consumption
|
Approx. 45 W (normal printing), 3W (standby)
|
AC adapter (36AD2,36AD3) |
Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA Rated output: DC24 V, 2.1 A |
Weight
|
CT-S601S (Built-in power supply type): 2.0kg CT-S601A (AC adaptor type): 1.6kg |
Outer dimensions (W × D × H) |
CT-S601S (Built-in power supply type): 145 × 192 × 148 mm CT-S601A (AC adaptor type): 145 × 192 × 120 mm |
Operating temperature and humidity |
5 to 45 °C, 10 to 90 % RH (no condensation)
|
Storage temperature and humidity |
-20 to 60 °C, 10 to 90 % RH (no condensation)
|
Reliability
|
Print head life: 150 km, 200 million pulses (at normal temperature and humidity using recommended paper) Auto cutter life: 2 million cuts (at normal temperature and humidity using recommended paper) |
Safety standards (*4) |
UL, C-UL,
|
