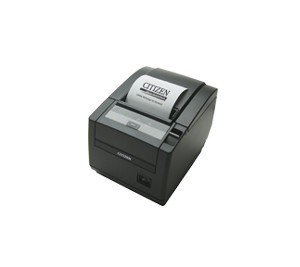

CT-S851
主要特性
A truly, unique printer: the industry’s first Front-Exit POS printer with a backlit graphic LCD display communicates with you. The world’s fastest, most reliable, easiest to configure and customize POS printer300mm/sec providing the fastest printing results for customersLonger cutter life delivers lower maintenance costs Greater reliability delivers longer life & lower maintenance costs Wider paper width allows printing of additional information & larger fonts USB standard meets market standardization requirements 2D/PDF417 bar code support allows wider applications Built in buzzer provides audible alert without adding extra cost devices 详细参数产品型号
|
CT-S851 New! |
Printing method |
Line thermal dot print (direct thermal) |
Resolution |
8 dots/mm (horizontal & vertical), 203 DPI |
Printing Speed |
300 mm/s ( 2400 dot-lines/s ) |
Number of columns |
53 / 48 / 36 / 35 columns - font A (default), 71 / 64 / 48 / 46 columns - font B, 80 / 72 / 54 / 52 columns - font C, depending of memory switch |
Character dimensions |
1.50mm x 3.00mm - font A (12x24 dots)
1.13mm x 3.00mm - font B (9x24 dots) 1.00mm x 2.00mm - font C (8x16 dots) |
Characters types |
Alphanumeric,international, PC437, Katakana,
PC850, PC852, PC857, PC858, PC860, PC863, PC864, PC865, PC866, WPC1252, Thai code 18 |
User memory |
384 Kb (capable of storing user-defined characters and logos)
|
Bar code types |
UPC-A/E, JAN(EAN)8/13, ITF, Code 39, Code 128, CODABAR, Code93, PDF-417, QR Code |
Line pitch |
Direct thermal paper roll, max.80 mm OD, 0.065 to 0.150 mm thickness |
Paper roll
|
Direct thermal paper roll, max.80 mm OD, 0.065 to 0.150 mm thickness |
Cutter type |
Guillotine, partial or full cut, 20 cycles/minute |
Interface |
Serial (RS-232C), Parallel (IEEE1284), Full speed USB 1.1, Powered USB (DC24V, 2.3A), Ethernet (10BaseT/100BaseT) |
Input buffer |
4K |
Cash drawer
|
2 cash drawers are supported |
Power supply
|
AC100-240V, 50-60Hz, 2.1A |
Power consumption
|
150VA |
Weight
|
Approx. 2.1 kg |
Outer dimensions |
145 (W) x 193 (D) x 148 (H) mm |
Operating environment |
5 to 45 C, 10 to 90%RH, no condensation |
Storage temperature |
from -20 to 60 C, 10 to 90%RH, no condensation |
Reliability |
Print head life = 200 million pulses or 150 km, Cutter life = 2 million cuts |
Installation |
Horizontal, vertical or wall-mounted |
Safety standards |
VCCI, UL, FCC, CE, TUV-GS, CCC |
Available drivers |
Windows (32bit/64bit): 2000 / XP / Vista, OPOS, JavaPOS, Linux CUPS |
